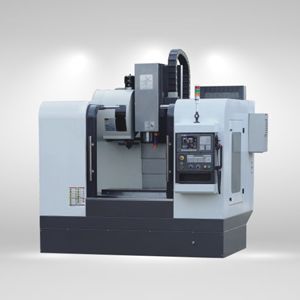

Vertical Maching Center-VMC700E

Build Your Online Product Catalogs?




Description
Product Name: Vertical Maching Center-VMC700E
Supply Ability:
Specifications VMC700E
Price Term: FOB
Port of loading:
Minimum Order 1
Unit Price:
You may also be interested in: machinery, mill, turn,

3 axes all linear guideways,high speed and accuracy
The VMC Series includes specialized machines for milling dies and molds-with high value features that increase your competitiveness.
Roller Type Linear Guideways
Extended Length on X and Z Axes
Designed using Optimal Structure
High Speed ATC
Table size: 800*400mm
T slot(width*nos*distance):18*3*110mm
Max load:400mm
X/Y/Z Travel: 700/400/450mm
Spindle nose to table: 90-540mm
Spindle center to column:LM:XYZ
Spindle type: BT40
Spindle Main servo motor:5.5/7.5,or 7.5/11
Spindle speed:8000,or 12000
Feed & Magazine:
X/Y/Z axis rapid traverse: 20/20/20 m/min
ATC capacity/type:16/Drum
Max.weight of tool:8kg
Dimension&weight:
Power capacity:17kVA
Dimension:2300*2100*2500
Weight(about):3200kg
